3D.EasyTeach
Intuitive Robot Teaching for Automated Paint Paths
3D.EasyTeach transforms manually guided coating movements into an automated, precise and repeatable robot path within just a few minutes, entirely without any programming knowledge.
With 3D.EasyTeach, automating manual coating processes becomes easier than ever before. The system uses precise infrared motion tracking to capture the manually guided movement of a paint gun and then translates this motion into an optimized robot path. Operators guide the paint gun as they normally would and immediately see how their own technique is transformed into a repeatable robot program. Complex programming is no longer required, as every step is software-assisted, optimized and automatically converted into the correct motion logic.
The intuitive user interface allows new components to be taught quickly and enables fine adjustments of paths with just a few clicks. What begins as a manual process becomes a stable, efficient and highly repeatable robotic coating application, ideal for small batches, prototyping and high-mix production. With 3D.EasyTeach, companies can automate their manual coating workflows in a very short time and benefit from high process reliability and consistently high-quality results.

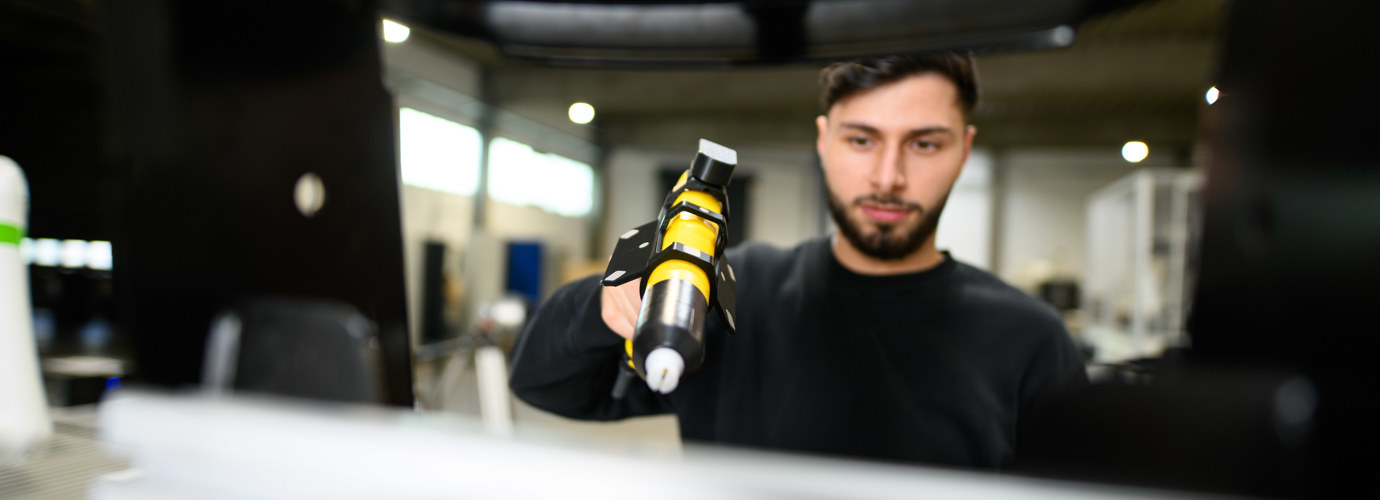

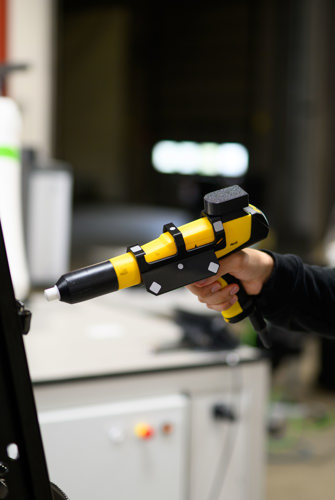

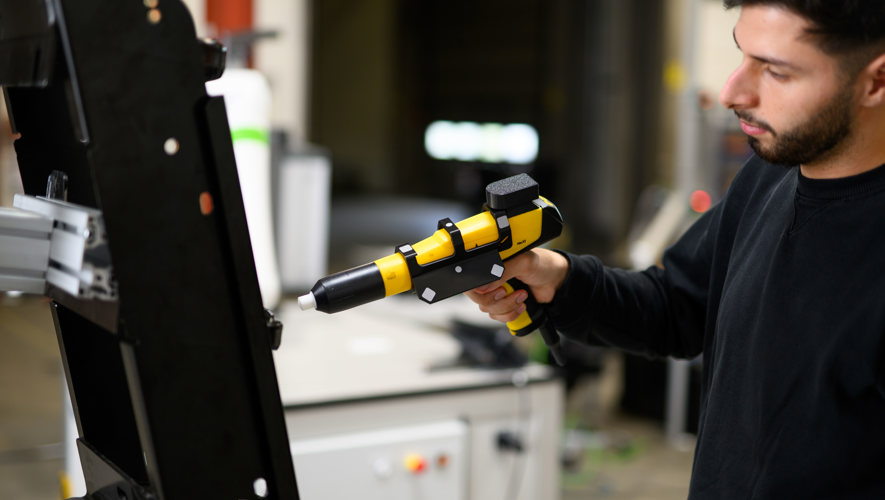

Hand-Guided Paint Gun (Teaching Process)
The image shows the manual guidance of the paint gun, where the operator demonstrates the desired coating motion to the robot. This real hand movement forms the basis for the subsequent automated robot path.

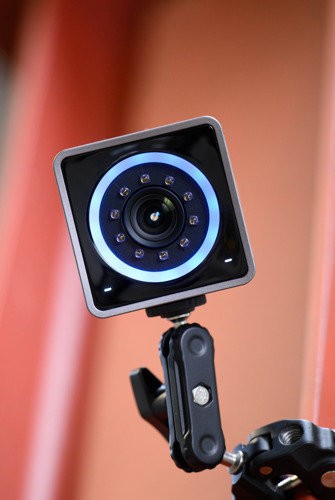

Motion Tracking Sensors
This image displays the infrared cameras and motion-tracking sensors that capture the hand movements with high precision. They record every position and orientation of the paint gun and translate it into an accurate digital motion model.

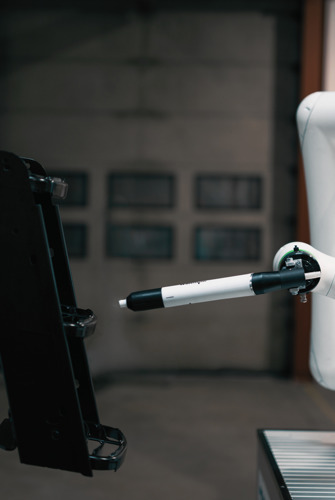

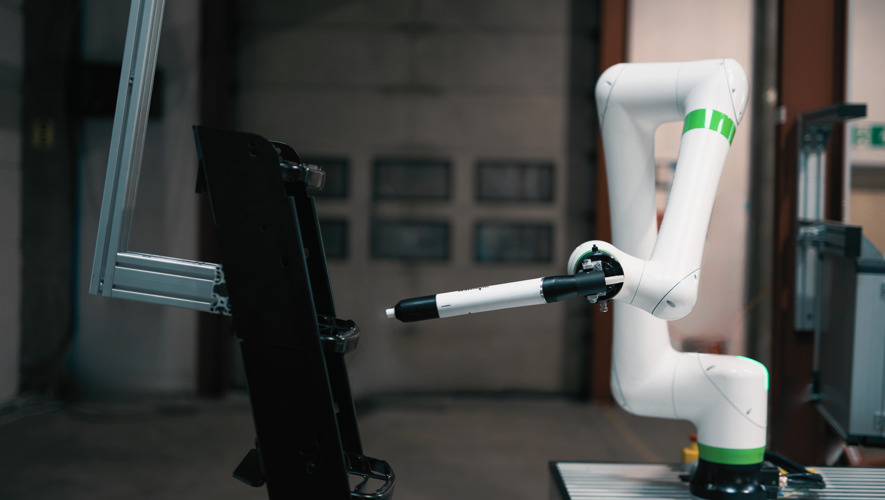

Automated Paint Path (Robot Executing the Path)
The image shows the robot autonomously following the previously learned paint path. The motion exactly replicates the manually performed sequence and ensures consistently high coating quality.Technical Data
Max. field of view
4 m height, unlimited ground
Max. range
5 m
Tracking accuracy
+/- 0.5 mm
Max. speed in line tracking
10 m/min
Robot programming language
Fanuc, ABB, Kuka, as per customers needs
