3D Tool Measurement for the Highest Quality Requirements

The HP-SX is a stationary inspection solution for fully automated, µm-accurate 3D measurement of precision tools such as milling cutters, drills, and cutting tools.
By combining white light interferometry, precise axis motion, and intelligent software, HP-SX enables 100 percent inspection directly in production – fast, repeatable, and non-destructive.

µm-Accurate 3D Tool Inspection for Highest Quality Standards

The quality of drills, milling tools, and hand tools has a decisive impact on productivity, safety, and service life. Conventional inspection methods such as through-light or focus variation reach their limits when it comes to complex geometries and full inspection coverage, whether in terms of accuracy, speed, or effort.

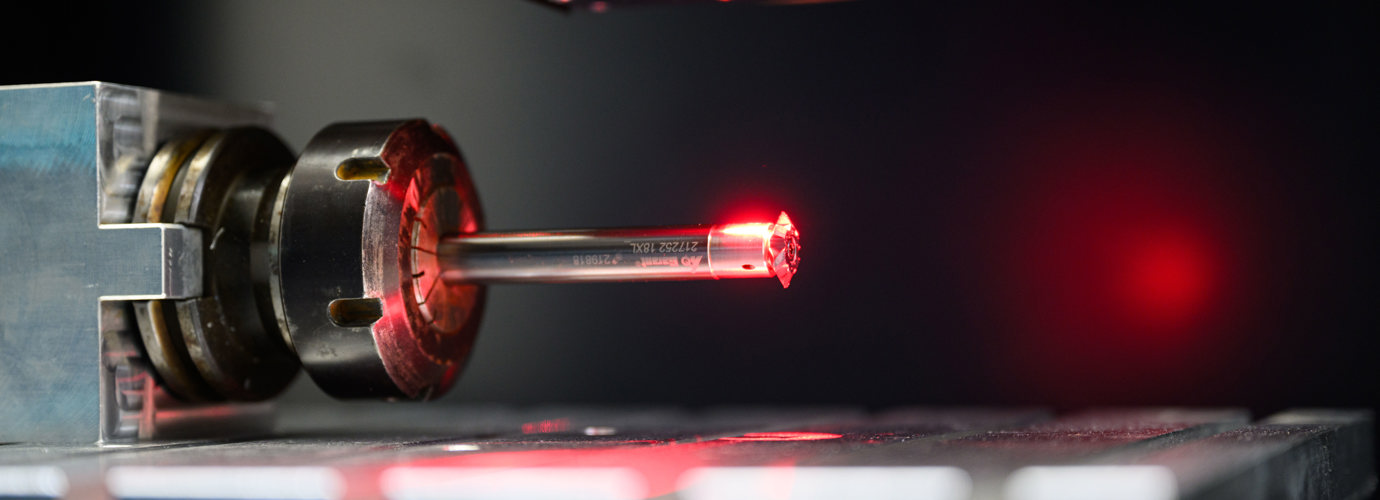

With the HP-SX, 3D.aero offers an innovative solution: a stationary inspection system based on high-precision white light interferometry. Combined with precise axis motion and the intuitive 3D.OS software, the system enables complete, µm-accurate 3D digitalization of tools, including internal geometries and cutting edges.
HP-SX is highly configurable, adapts to individual tools and customer requirements, and significantly reduces inspection effort – delivering reliable measurement results, reduced scrap rates, and maximum process reliability.
