Is it possible to perform high-precision measurements for industrial assembly processes with a low-cost stereo camera system?
This is exactly the question we asked ourselves together with our partners Airbus, Fraunhofer IFAM, cenit, and Broetje.

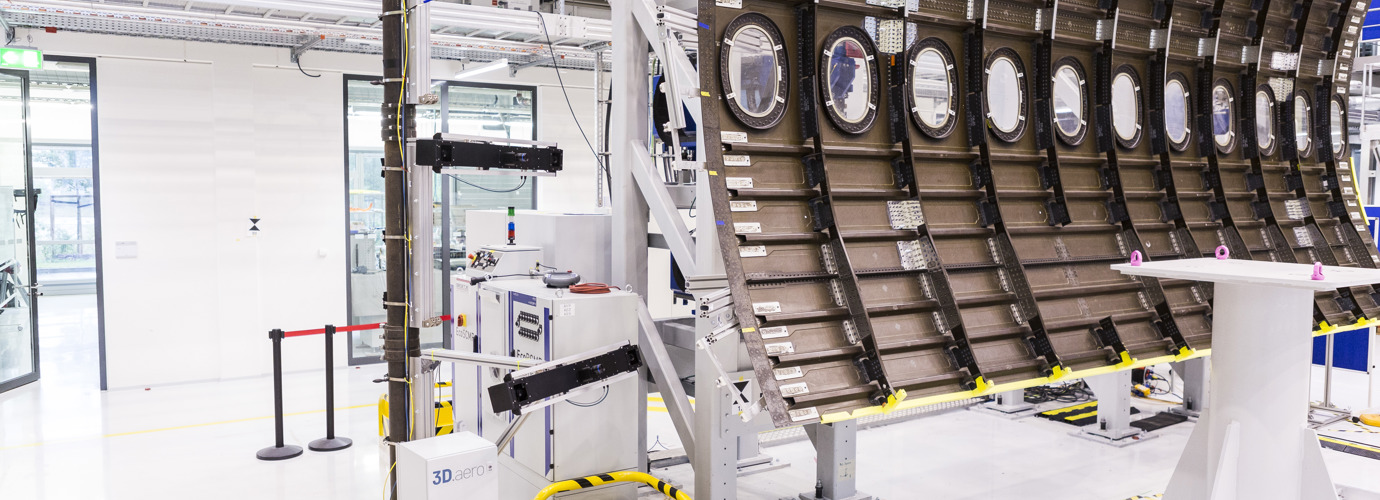

The “BiSconA” research project provides the answer. The BiSconA project is concerned with the assembly of aircraft side shells into a fuselage section. For the stress-compliant assembly process, the positions and deformations of the shells for riveting must be precisely recorded. The laser tracker survey used so far includes the problem of manual attachment of tracking elements. The process is time-consuming, not particularly user-friendly and prone to measurement errors.
The goal of the collaboration is thus to develop an automated “Built-in Stress conformal Assembly” of side shells to achieve a more precise and efficient assembly process. The aircraft side shell should remain in as stress-free a condition as possible.

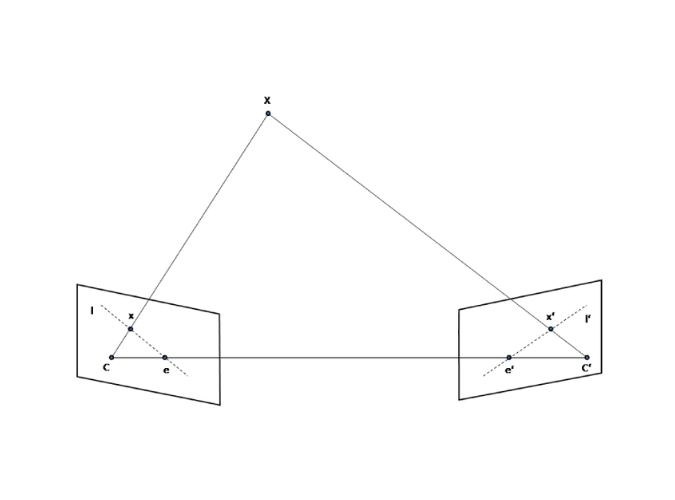

To implement this solution, 3D stereo camera systems are used for shape recognition during the assembly process. This includes the measurement of features on the surfaces of the side shells and the measurement of the shape and position of the interfaces. The collected data is then further processed, resulting in the best possible assembly position being calculated and approached by the deformation actuators. The requirements for this are high accuracies of < 0.5 mm in an absolute coordinate system of the building site and a measuring distance of at least 1.4 m.
Cost-efficient 3D stereo camera system for large-scale structure measurement
3D.aero is developing a low-cost stereo camera system for industrial applications that meets the requirements of the BiSconA use case. In our solution, we use simple smartphone cameras, a simple calibration procedure and a self-developed referencing system to be able to measure the aircraft side shell precisely.

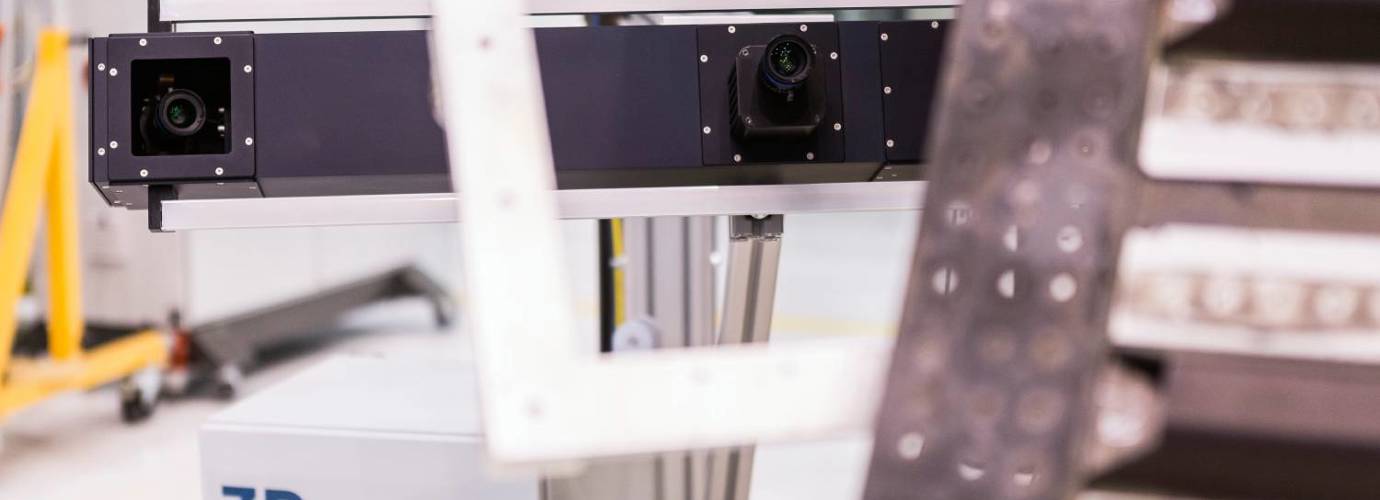

The result is a self-developed 3D stereo camera system for large structure measurement. Our development uses MiPi cameras with a resolution of 12MPx, a base made of carbon and CS-mount (with adapters to C-mount).
The transformation into the required coordinate system is performed by a movable reference frame, which is placed between the camera system and the object to be measured. This frame also serves as a holder for the (IR) flash and can be used for on-site recalibration, as the stereo camera systems are very difficult to reach after mounting. This allows us to keep an eye on measurement accuracy and recalibrate as needed without much effort. An initial calibration is performed in the laboratory using our proprietary calibration software prior to assembly.
Cost-efficient Solution: 80% cost savings compared to laser tracking
Reliable measurements: Robust measuring system in 0.1 mm accuracy
Flexibility: Can be used for a wide range of measurement tasks
